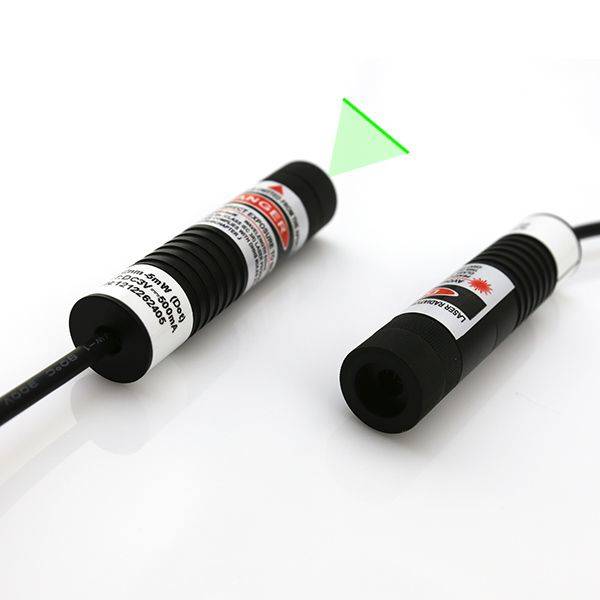

What is an efficient job for engineers to make ultra clear and precise line projection for tire processing works? It is not able to rely on any manual or mechanical line printing or line drawing work, but making even better job to apply a highly bright beam emitted tool of a 532nm green laser line generator. It applies the advanced 532nm green DPSS laser tech and a qualified optic lens inside a durable metal housing tube, connected with an external electric power source supply, it enables constant green line projection onto multiple tire processing surfaces. This green line laser module is primarily used in a tire production processed, such as forming, vulcanization, and inspection. Green line alignment serves for positioning, marking, and auxiliary inspection, adapting to the entire tire processing workflow. Its features are tailored to the specific needs of rubber processing.
https://www.berlinlasers.com/532nm-glass-lens-gree...
Commonly 532nm green laser line generator applies an AC/DC adapter as its electric power source, being made with advanced 532nm green DPSS laser tech within 5mW to 200mW, it should only be equipped with different operating voltage of 5V, 9V or 12V 1000mA AC/DC adapter. When it projects highly bright and visible green laser light at several miles far away, it is also able to make ultra clear and precise green reference line projection within long extending distance of 25 meters and multiple high lighting environments as well. Owing to its high sensitivity green laser light emission, when green line laser module is pointed onto dark rubber surfaces, the green reference line is clear and conspicuous, far exceeding the visibility of red light.
https://www.berlinlasers.com/oem-lab-lasers/laser-...
Being made with a qualified glass coated lens within 10 to 110 degree fan angles, together with low laser beam divergence of less than 1mard and special TEM00 laser beam mode, 532nm green laser line generator ensures line width within 1mm within 3 meters, without light-dark differences, and no impact on positioning judgment. Within wide operating temperature and harsh working occasions, the durable anodized aluminum alloy housing tube made green line laser module enables high linear quality and highly straight green reference line projection within 0.5 meter to 6 meters length, and freely adjusted green reference line thickness until achieving increasing accuracy and brightness line projection during tire processing works.
https://www.berlinlasers.com/alignment-laser
According to the adoption of a 16mm, 18.9mm and 26mm diameter tube design for different output power range, 532nm green laser line generator can adapt to different sizes of processing equipment. It is compatible with the power supply systems of various tire processing equipment. Quick installation is achieved with a laser alignment mounting bracket, and it can also be connected to the equipment's PLC for rapid parameter switching. After replacing manual marking and positioning, green alignment laser enables low production cost and high efficiency improvement, significantly reducing errors such as interlayer misalignment and dimensional deviations, thus reducing tire scrap rates.
